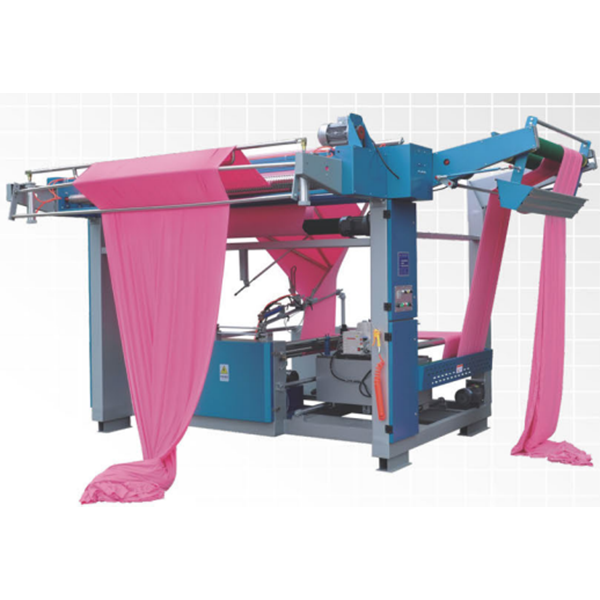

ST-168 Automatic Folding And stitching Machine

Short Description:


  • EXW Price: : US $ 0.5-100000 / Piece
  • Min.Order Quantity: : 100 Pieces
  • Supply Ability: 200000 Pieces per Month
  • Port: Fuzhou
  • Payment Terms: L/C,D/A,D/P,T/T or To be negotiated
  • Product Detail

    Product Tags

    Mechanical Performance:
    -. This machine is specially used for the knitted fabric in the period of before dying and after fixation to fold and stitching cloth edge. t is especially suitable for the rubber elastic cloth LY-CRA, shearing cloth;
    -. PLC control the machine running
    -. The machine adopts the computer type heavy stitching, and can adjust the nail distance according to the processing requirements of different cloth types;
    -. Three sets of edge align system, using contrast-type electric eye tracking;
    -. With cloth center correction device, the cloth can be accurately centered. and with the expending roller, to make the cloth flat no matter when it turning or crimping.
    -. with 4 sets of edge spreader to make the cloth edge unfold before nail cloth edge.
    -. Adopting point mode nail distance device, the nail distance can be adjusted according to customer's needs, and equipped the broken line detector, When the nail is missing then machine will stop automatically, and the missed nail can be manually repaired
    -. Mobile nail distance device can improve the nail edge speed.

    Technical Parameters:

    Working Width:  2800mm
    power:  1HP reducer + inverter
    Operating space:  3500mm x 6800mm x 2500mm
    Air pressure requirement:  6kg/cm 3(5HP-7.5HPair compressor))
    Nail speed:  45 nails/min (MAX) depending on the length of the nail
