Servo Correction and Tension-free Fabric rolling Machine

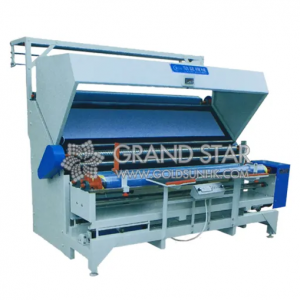

ST-W350 Servo Correction and Tension-free Fabric rolling Machine
APPLICABLE SCOPE:
Inspecting-rolling machine with double frequency conversion is mainly used for the inspecting and rolling of textiles, printing and dyeing products, garments fabric, synthetic leather, knitting fabrics, warp knitting fabrics, low-weight non-woven fabric, etc.
PERFORMANCE OF THE MACHINE:
- Using the Pioneering technology of double frequency for inspecting and rolling to control the tension of the fabric, which can control the tension of different fabric.
- Using Taiwan hydraulic system and infrared photoelectric to achieve automatic fabric edge alignment, it is sensitive, precision and neat.
- Main Motor adopts Taiwan gear reducer motor.
- Adopting the most advanced electronic length counter.
Specifications and technology parameters:
| Applicable width | 72″ – 126″ (1800mm-3200mm) |
| Rolling diameter | ≤~600mm |
| Rolling and inspecting speed | 0-70m/min (0-77yd./min) |
| Correcting type | Hydraulic |
| edge align precision | ±0.3mm |
| Metering error | ≤0.4% |
| The adjustment scope of tension equilibrium |
0-400N |
| Main motor power | 0.75-2.2KW |
| Weight | 80″ = 1000kg |
| Outline dimension | 80″ = 2800mm*2100mm*2300mm |
| Suitable fabric | Inelastic fabric |
